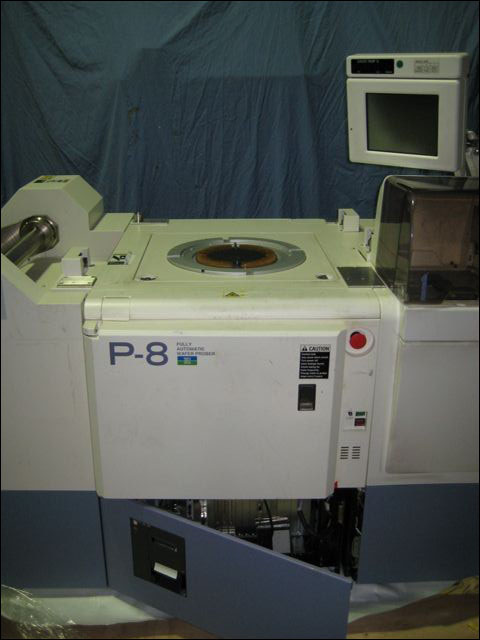

Tel P8 Wafer Prober for sale.
Ref # PRO86
Configuration
Vintage 1996
Gold Chuck
Yes
HotChuck
No
Ambient Chuck
Chuck previously set up for D204 Chiller, but chiller is not present
KLA OCR
Yes
Standard Headplate
Yes
Software
Rev Pzz00-R012.05-2
Loader Type
Top
GPIB
Yes
Camera Auto
Onaxis Alignment
4 to 8 Inch Wafer Change W/O Mechanical Change
Flat/Notch PreAlign
After Probe Inking
Probe Mark Inspection
Ink Dot Inspection
Real Time Mapping
Control Mapping
LCD Touch Panel
Yes
Multi Die Test
AC Supply
115VAC
Z Stroke
Clean Pad
Yes, 50mm Polish Pad
Printer
Yes
SACC W/200mm Card Clamp
Manipulator
Model number 301

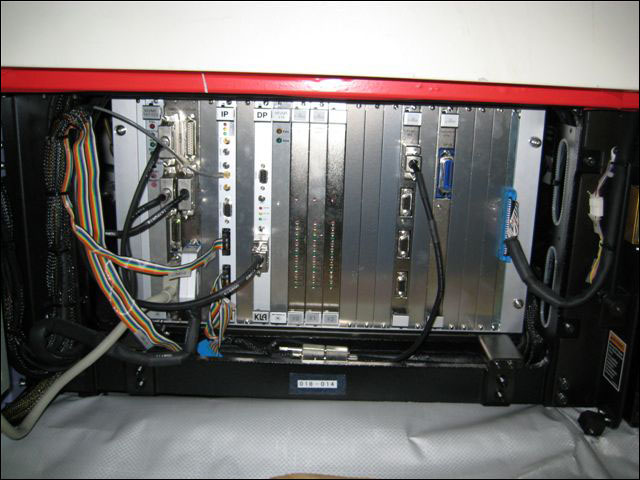

Card Cage:
32 Mhz Processor W/16MB RAM
TVB0004-1/147 HDD 353 MB
KLA IP-DP
Vision Display
SIO
GPIB Control Card
Please call 856-697-4400 or email JMC
for more information about our Tel P8 Wafer Prober
