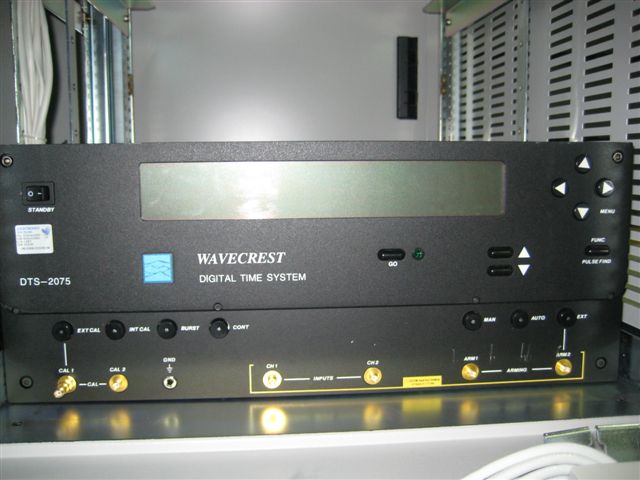

The DTS-207x Series Digital Time Scope (DTS) is designed for applications
where timing accuracy is critical. The DTS provides direct, real-time
measurements without the associated errors during the sampling and
transformation of data while waiting for a waveform to be displayed. The
result is a precision instrument capable of measuring time between two
events with a resolution of 800 femtoseconds and single-shot measurement
accuracy of ±25 picoseconds (ps). The DTS features and capabilities
include: • Measuring several different characteristics of an electrical
pulse. Those characteristics are: – Propagation Delay (TPD++, TPD--, TPD+-,
and TPD-+) – Rise/Fall Time (TT+, TT-) – Period/Pulse Width/Frequency (PW+,
PW-, PER, FREQ) – Cable Measurement – Strobing voltmeter - to digitize
input waveforms – 16-bit DVM on each channel • Taking one measurement with
a single-shot accuracy of ±25ps, or as many as 1,000,000 readings, and
recording statistical data output with an accuracy of ±10ps. • Two
different operational modes and three different triggering methods. • Both
an internal and external AC and DC calibration mode. |
