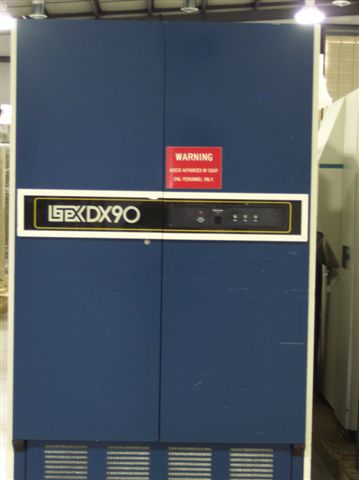

LTX DX90 Component Tester

JMC currently has an LTX DX90 for sale.
Ref # COM59
This item has been sold. View more Component Testers

Configured As Follows:

BACKPLANE 701

SLOT DESCRIPTION

1 DC DISTRIBUTION

2 EXTENSION CONTROL

3 CLOCK DISTRIBUTION

7 PG802 CONTROL A

9 PG802 CONTROL B

11 PG802 CONTROL C

16 PG802 MEMORY 1

20 PG802 MEMORY 2

24 PG802 MEMORY 3

38 BUS TERMINATOR

39 DC DISTRIBUTION

BACKPLANE 702

SLOT DESCRIPTION

1 DC DISTRIBUTION

2 CODEC SUPPORT

6 to 29 FORMATTER

38 MASTER CLOCK

39 DC DISTRIBUTION

BACKPLANE 703

SLOT DESCRIPTION

1 DX90 SYNTHESIZER

18 DC DISTRIBUTION

POWER SUPPLIES

P/N QTY

876-0171 2

NJE-022C-C           3

NJE-876-0170        3

Test Head Configuration:

DX90 HEAD

PART NUMBER DESCRIPTION QTY.

860-0547 DX90 PIN CARDS 24

860-0560 DX90 REFERENCE 1

860-1116 BLANK XTAL 1
