Teradyne A360 / Teradyne 360 Component Tester

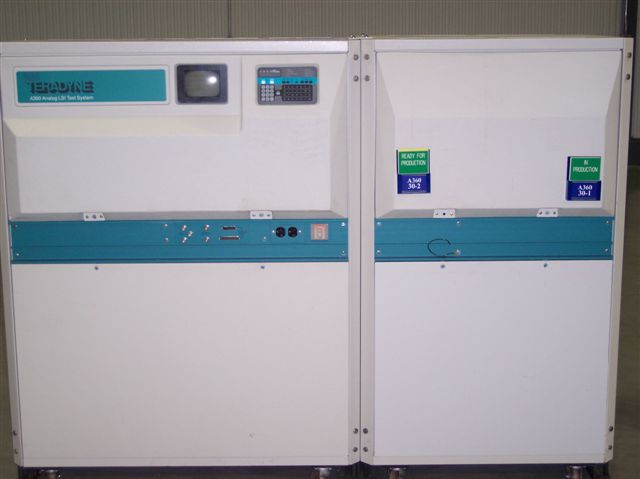

Teradyne A360

This item has been sold. View more Component Testers

JMC currently has an Teradyne A360 for sale.
Ref # COM92

Configured As Follows:

TERADYNE A360		SN 8341250


SLOT	P/N	DESCRIPTION
1	AD231	DATA STATION
2	AD379	SPACE SHUTTLE
3	AD303	AUDIO SYNC MUX
5	AD377/AD375	TIME FR END /CHECKER
6	AD376	TIME INTERPOLATOR

SLOT A	P/N	DESCRIPTION
1	AD267	STATION MUX
2	AD267	STATION MUX
3	AD267	STATION MUX
4	AD267	STATION MUX
9	AD361	MISC MUX
10	AD372/AD572	STATION POWER
11	AD266	CROSS PT MATRIX
12	AD266	CROSS PT MATRIX
13	AD266	CROSS PT MATRIX
14	AD266	CROSS PT MATRIX
15	AD266	CROSS PT MATRIX
16	AD266	CROSS PT MATRIX
17	AD266	CROSS PT MATRIX
18	AD266	CROSS PT MATRIX
26	AD360	PAP GENERATOR
27	AD206	METER A/D CONVERT
28	AD205	METER PROCESSOR
29	AD208	METER CONT LOGIC
30	AD363	HANDLER I/F
32	AD367	PENDANT I/F
33	AD364	STATION CONT
35	AD220/445	W2/4 MUX 3-4
37	AD220/445	W1/3 MUX 3-4
38	AD225	STATION TIMER
39	AD231	DATA BUSS
SLOT B	P/N	DESCRIPTION
2	LD776	DC DC CONVERT
4	LD881	VOLTMETER
6	LD883	A D CONVERT
8	LD770	SOURCE
10	LD770	SOURCE
11	LD775	TIMER
12	LD771	CONTROL
13	AD212/AD330	CALIBRATION REF
14	AD362	MATRIX CONTROL
15	AD203	SOURCE
16	AD204	SOURCE
17	AD203	SOURCE
18	AD204	SOURCE
19	AD203	SOURCE
20	AD204	SOURCE
21	AD203	SOURCE
22	AD204	SOURCE
23	AD203	SOURCE
24	AD204	SOURCE
25	AD203	SOURCE
26	AD204	SOURCE
27	AD203	SOURCE
28	AD204	SOURCE
29	AD207	DELTA
33	AD358	DUAL OUTPUT
35	AD357	MUX AMMETER
37	AD356	ANALOG CONT
38	AD355	DUAL DIG CONT
39	AD231	DATA BUSS

EXPANSION BAY
P/N	DESCRIPTION
M607-20
AD396	DATA APPLICATION
LD875-10	BURST CONTROL
LD874	CLOCK TIMER
AD399	INTERCONNECT
