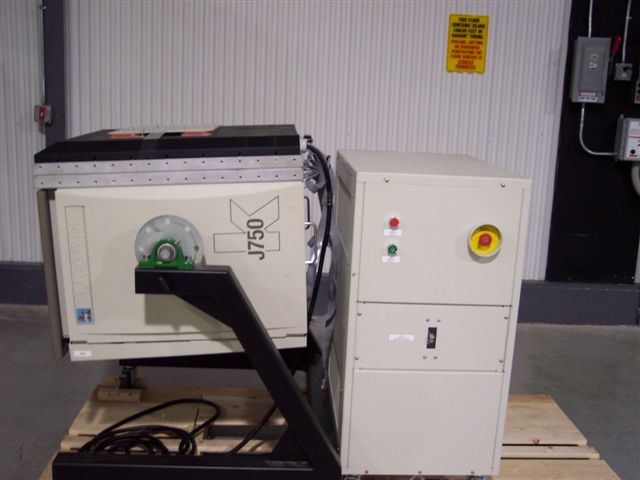

TERADYNE J750K |
|
|
|
BOARD CONFIGURATION |
|
|
|
|
|
SLOT |
DESCRIPTION |
P/N |
|
|
|
|
|
0 |
CHANNEL 0-63 |
239-026-01/B |
|
18 |
CHUB |
239-020-06 |
|
22 |
DPS 0-7 |
239-016-03/D |
|
|
|
|
|
POWER SUPPLY Configuration |
|
P/N |
|
OUTPUT |
|
|
|
|
|
405-325-00 |
|
24V/33A, (2) 3.3V/320A |
|
405-326-00 |
|
10.5V/160A, 5V/80A, 24V/33A |
|
405-327-00 |
|
15V/10A, 34V/20A, -10V/15A, -36V/5A |
|
405-328-00 |
|
5V/150A |
|
|
|
|
|
|
|
|
|
DIAGNOSTIC BOARD P/N 329-004-01 |
|
|
|
|
|
|
|
POWER CONDITONER P/N 235-750-21 |
|
|
|
|
|
|
|
WORK STATION CONFIGURATION |
|
|
|
|
|
|
|
PENTIUM 4 COMPUTER |
|
|
|
COMPAQ KEYBOARD |
|
|
|
COMPAQ 21 INCH MONITOR |
|
|
|
SUN KEYBOARD |
|
|
|
VIEW SONIC 17 INCH MONITOR |
|
|
