Advantest T3324

Advantest T3324

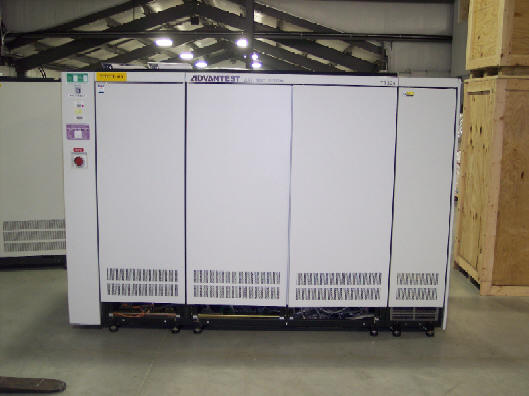

JMC currently has an Advantest T3324,
256 pin for sale. Ref # COM20
To View Diagnostic Information

Configured As Follows:


TOP BAY
Right to Left

SLOT	DESCRIPTION	PART NUMBER

1	DCT1	BGR-019748
2	DCT2	BGR-019748
3	DCT3	BGR-019748
4	DCT4	BGR-019748
5	IFA	BGR-017023X02
6	IFA	BGR-017022X02

1	IF	BIR-013796
4	DD	BGR-015372
5	VGC1	BGR-017015
6	VGC2	BGR-017016
14	MATCH	BGR-016840
15	MATCH	BGR-016840
16	PC	BGR-015683
17	CTB	BGR-015684/BGR-015685
18	TRIG	BGR-017203
19	FMC	BGR-016942
20	DLYC	BGR-015820
21	PGCNT	BGR-015933

1	RATE	BGR-015648
3	OPIF	BGR-017153
4	TGCNT	BGR-013610
5	DLY-S	BGR-015470X04
8	MDA	no p/n
9	SBCNT	BGR-015647X03
10	DLY-M	BGR-015470X03
11	CLKS	BGR-015466X05
12	CLKM1	BGR-015466X04
13	CLKM2	BGR-015466X04
14	CLKM3	BGR-015466X04
15	CLKM4	BGR-015466X04
16	TGIF	BGR-015554X03

1	none	BGR-017575
2	none	BGR-017578
3	none	BGR-017579
4	none	BGR-015923
5	none	BGR-014567
6	none	BGR-014059X02

1	PPS1	none
2	PPS2	none
3	PPS3	none
4	PPS4	none
5	DCT1	BGR-014676X03
6	DCT2	BGR-014676X03
7	DCT3	BGR-014676X03
8	DCT4	BGR-014676X03
9	IFA	BGR-017023
10	IFL	BGR-017022
11	MDC1	BGR-013744X01
12	MDC2	BGR-013744X01
13	MDC3	BGR-013744X01
14	MDC4	BGR-013744X01
15	MDC5	BGR-013744X01
16	MDC6	BGR-013744X01
17	MDC7	BGR-013744X01
18	MDC8	BGR-013744X01


BOTTOM BAY
Right to Left

SLOT	DESCRIPTION	PART NUMBER

1	AP	BGR-016943
2	FCDC IF	BGR-018316
3	FCDC	BGR-017012
4	TTB	BGR-016941
5	FCDC	BGR-017012
6	FCDC	BGR-017012
7	TTB	BGR-016941
8	FCDC	BGR-017012
9	CDIST	BGR-016472
10	CDIST	BGR-016472
11	CDIST	BGR-016472
12	CDIST	BGR-016472
13	FCDC	BGR-017012
14	TTB	BGR-016941
15	FCDC	BGR-017012
16	FCDC	BGR-017012
17	TTB	BGR-016941
18	FCDC	BGR-017012
19	DFM	BGR-015821
20	DFM	BGR-015821

1	AP	BGR-016943
2	FCDC IF	BGR-017011
3	FCDC	BGR-017012
4	TTB	BGR-016941
5	FCDC	BGR-017012
6	FCDC	BGR-017012
7	TTB	BGR-016941
8	FCDC	BGR-017012
9	CDIST	BGR-016472
10	CDIST	BGR-016472
11	CDIST	BGR-016472
12	CDIST	BGR-016472
13	FCDC	BGR-017012
14	TTB	BGR-016941
15	FCDC	BGR-017012
16	FCDC	BGR-017012
17	TTB	BGR-016941
18	FCDC	BGR-017012
19	DFM	BGR-015821
20	DFM	BGR-015821

1	SBM CONT	BGR-012893
2	2M MEM	BGR-012892
3	2M MEM	BGR-012892
10	SBM IF	BGR-012894

1	VIO IF	BGR-016076
2	VIO	BGR-016461
3	VIO	BGR-016461
4	VIO	BGR-016461
5	VIO	BGR-016461
6	VIO	BGR-016461
7	VIO	BGR-016461
8	VIO	BGR-016461
9	VIO	BGR-016461
10	VIO IF	BGR-016076
11	VIO	BGR-016461
12	VIO	BGR-016461
13	VIO	BGR-016461
14	VIO	BGR-016461
15	VIO	BGR-016461
16	VIO	BGR-016461
17	VIO	BGR-016461
18	VIO	BGR-016461


TEST HEAD 256PIN
DESCRIPTION	PART NUMBER
CONT A	BGG-018013
CONT C1	610486B2X02
CONT C2	610486B2X02
CAL 1	410467B
CONT B	BGG-017151
DC1	BGG-017152
DC2	BGG-017152
DC3	BGG-017152
DC4	BGG-017152
CAL2	410467B
PIN CARD	612107D
