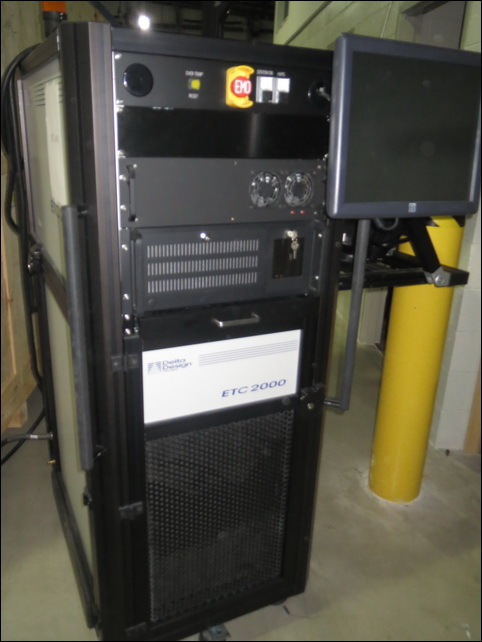

System Includes:
Precision Conduction Thermal Control
32 Channel Data Aquisition
On-System Data Collection
GPIB Communications
Dynamic Temperature Analysis Capability
Foxbat Capability

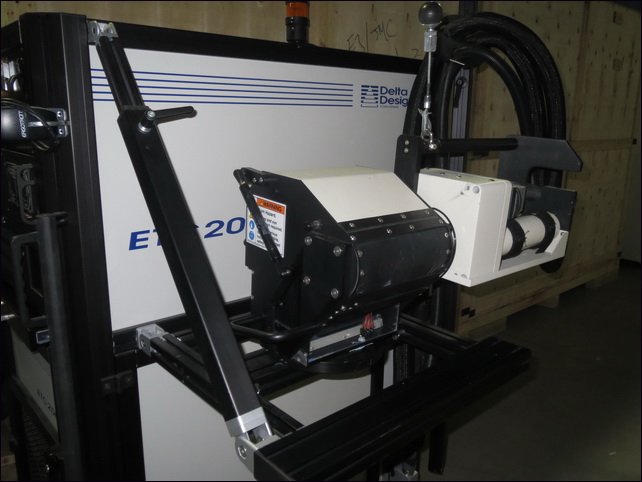

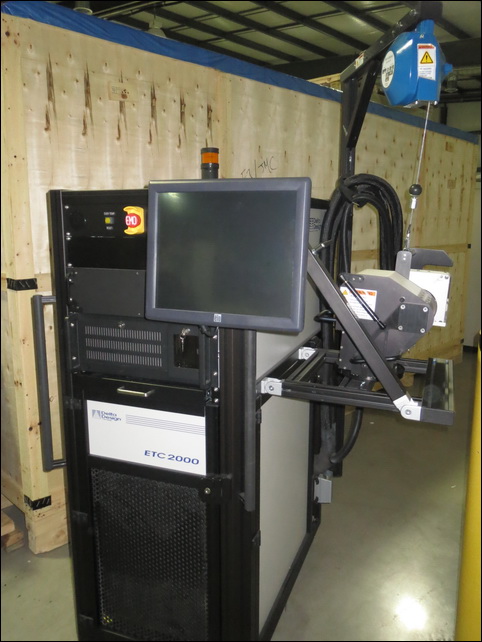

Fulcrum Tester Module 8" to accommodate 1.2 (TU)
Power Summing Board #A6499564000
Current Source Option #A6499598000
HFE 7500 Fluid Option #A6499075000
Quick Disconnect Retrofit #1947978901
Windows 2000 System Hard Drive ver 2.2.1 #A6499742000
DEVICE KITS BGA, LGA, PGA, MCM. (For other package
types, consult Delta Design)
DEVICE SIZE Accommodates a wide range of package sizes
DEVICE CHANGEOUT <30 seconds
DEVICE KIT CHANGEOVER <30 minutes PLATFORM
TEST SITE Horizontal, can be configured for right or left side access
TEMPERATURE RANGE -40°C to +150°C setpoints
-10°C to +150°C Power
Balancing™ setpoints
TEMPERATURE ACCURACY ±1.0°C with 0.1°C resolution
VARIATION FROM SETPOINT <3.0°C capable with patented
Power Balancing™; Power/
package dependent (consult
factory)
THERMAL CONTROL Heater temperature feedback
MODES Device temperature feedback
(RTD or diode)
Power Balancing™
COOLING Air-cooled HFE chiller
USER INTERFACE PC/LabVIEW®, keyboard with
integrated trackball, color LCD
monitor
COMMUNICATIONS GPIB
INTERFACE

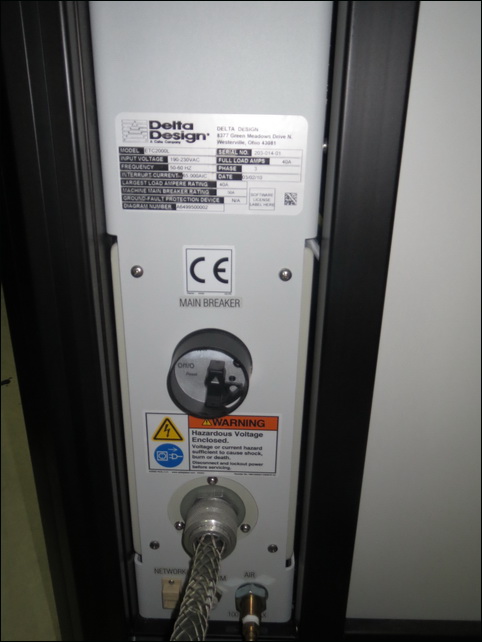

POWER REQUIREMENTS 208VAC, 60 Hz, 3-phase, 30 Amp
AIR 80 psi, 6 scfm, clean, dry
WEIGHT 750 lbs. (340 kgs.)
SYSTEM DIMENSIONS 42"L x 28"D x 63"H
(1.07m x 0.7m x 1.6m)
2nd generation of Delta’s industry-leading
active conduction thermal control
-10°C to +150°C setpoint
temperature range
Patented Power Balancing™ junction
temperature control
Industry’s fastest setpoint temperature
changing solution
Needs only AC power and air –
no chilled water
Fast device changeout – independent
of setpoint
GPIB test system interface
PC / LabVIEW® user interface
8-channel, on-system data acquisition
The ETC2000 features the fastest and most accurate
device thermal control technology:
