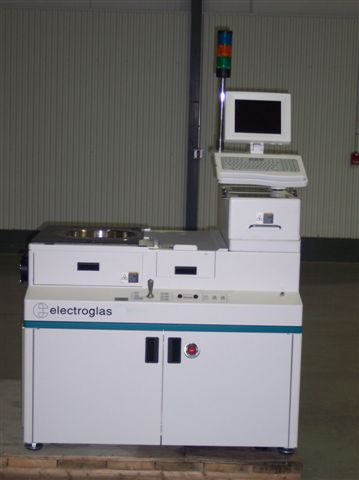

| Electroglas EG 4090 Automatic Wafer Prober | ||
|
|
|
|
|
|
| Configured As Follows: | |
| S/N RH99070630 | |
| 8 inch Gold Hot Chuck | |
| Temp/Mux Control TC2000 p/n 258158-001 | |
| Monitor | |
| Keyboard | |
| Cassette Loader | |
| Prober Control Module | |
| A1 CPU 020 PCB 251411-002 rev.P | |
| U12 252384-001 revH | |
| U15 252372-001 rev.B | |
| U17 252374-002 rev.B | |
| U18 252378-001 Rev.A | |
| U29 252380-001 rev. D | |
| U31 252382-001 rev.A | |
| A2 Motion Control PCB 102944-011 revA | |
| U26 263232-001 | |
| U27 263233-001 | |
| U28 263234-001 | |
| U29 244544-004 MC Id 98029912 CHK SUM 0DD6 | |
| A4 Tester Interface PCB 244288-001 revA | |
| A5 Theta Z Joystick Function 3 PCB 251732-002 rev H D97089490 CK Sum A802 | |
| U13 252455-001 rev. A | rev. A1 |
| U36 252464-001 rev.J | |
| U43 252458-001 rev. B | |
| U44 252461-001 rev. B | |
| A7 Extended Memory 256303 | ORY 256303 |
| A9/11 MUX Driver PCB 252158-001 revK | |
| U5 252687-001 revB | |
| U17 252690-001 revC | |
| DAR Boards | |
| A1 Y Direction PCB 256938-001 rev. C | |
| U1 244544-004 ID 97089490 CKSUM 9F5A | |
| U2 244544-004 ID 97089490 CKSUM 1FF4 | |
| U3 244544-004 ID 97089490 CKSUM A6C3 | |
| A2 X Direction PCB 256938-001 rev C. | |
| U1 244544-004 ID 97089490 CKSUM A306 | UM A6C3 |
| U2 244544-004 ID 97089490 CKSUM 21A2 | |
| U3 244544-004 ID 97089490 CKSUM 9F4E | UM 9FBA |
| Display Controller Module DCM-2 | |
| Material Handler Contoller Module MHCM | |
| Mother Board PCB 251883-001 | |
| U7 253365-001 rev.A | |
| U8 253361-001 rev.B | |
| U14 253360-001 rev. A | |
| U23 253359-001 rev. A | |
| U25 253357-001 rev. G | |
| U29 253364-001 rev.A | |
| U33 253362-001 rev.C | |
| U35 253363-001 rev. A | |
| Vision Module PRM-3 | |
| Vision PCB VPM 3434-1 p/n 200-0057-1 | |
| Power Req 115VAC/60HZ | Vec. ZC |
| Also includes Lytron MCS Chillers p/n MCS 10G03M01 | |
